Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine

Overall Machine Dimensions (approx.) : 2100*1200*2000mm

Type : Testing Machine

Application : Strength Testing, Tensile Testing

Protection Class : IP65

warranty : 1 Year

Accuracy : Maximum Test Force: 200kg

MOQ : 1 piece

Test Times : 0-9999999 can be set arbitrarily

Brand Name : HUAKAI

Accuracy Class : High Accuracy

Shutdown Method : Shutdown when the test times are reached

customized support : OEM, OBM

power : 300w

Voltage : 220 V

Place of Origin : Guangdong, China

Price : $3,600-5,000 / piece

Contact Now

Product Overview
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
The Office Chair Structural Strength Testing Machine is designed to evaluate the fatigue strength and durability of office chair backrests, seats, and armrests. By applying repeated loads over a set number of cycles, the machine checks the structural integrity and identifies potential failures or excessive deformations in chair components. It is an essential testing instrument for office furniture manufacturers, quality inspection agencies, and certification bodies.
Functions & Applications
* Simulates repeated backward loading on office chair backrests and seats.
* Evaluates fatigue resistance of chair backrests, seats, and armrests.
* Detects structural damage or excessive deformation under cyclic loads.
* Widely used in office furniture R&D, quality assurance, and compliance testing.

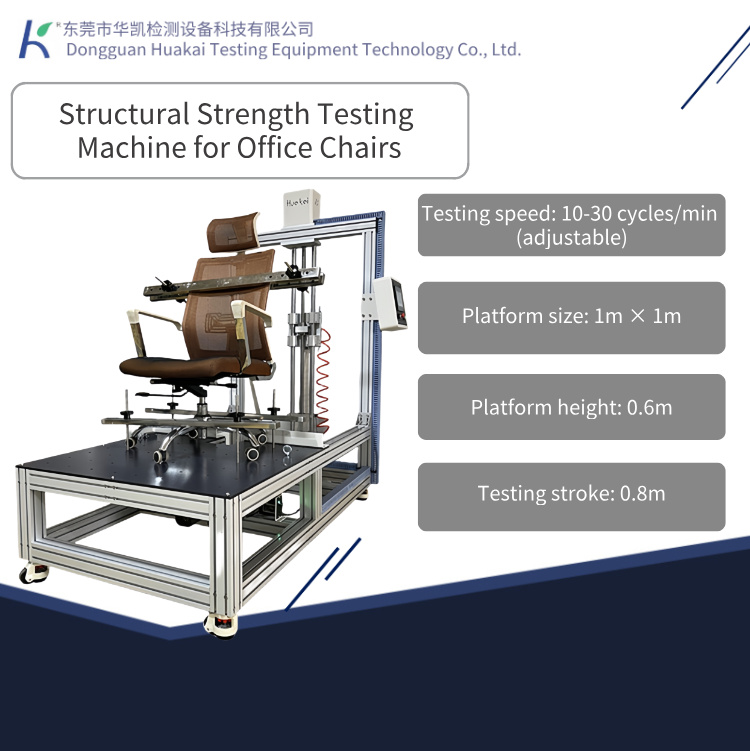

Product Paramenters
Item
Specification
Model
HK-824
Maximum Test Load
200 kg
Test Speed
10–30 cycles/min (adjustable)
Test Cycles
0–9,999,999 (freely programmable)
Platform Size
1000 × 1000 mm
Platform Height
600 mm
Test Stroke
800 mm
Machine Dimensions
2100 × 1200 × 2000 mm (L×W×H)
Stop Modes
Automatic stop when cycles are completed, or when test piece breaks or deforms excessively (with alarm)
Products Description
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine

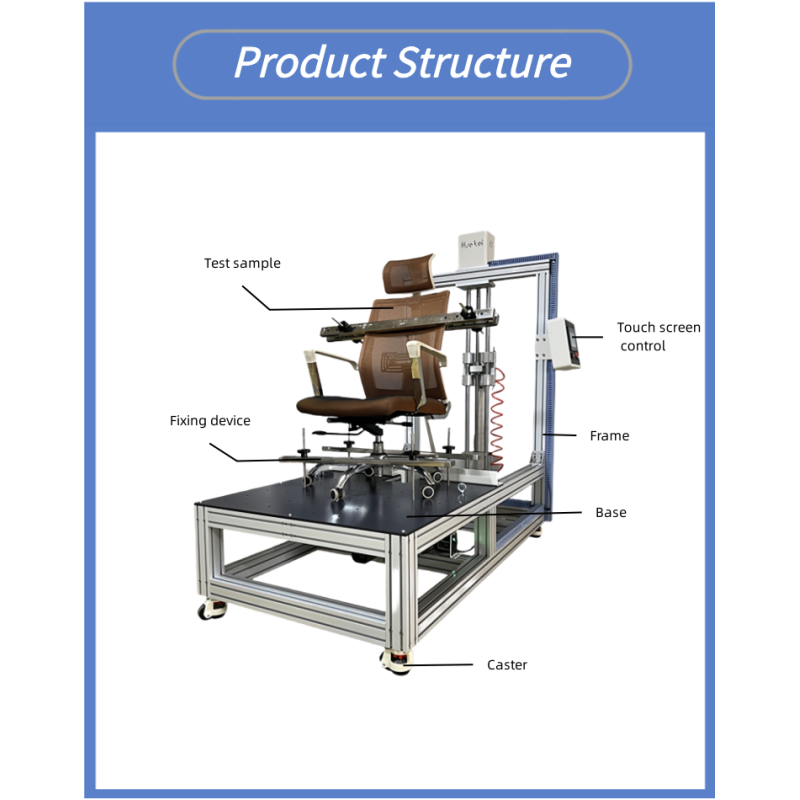

Structure & System Configuration
* Loading Unit: Two high-precision servo test loading units with planetary gears and belt-driven linear motors.
* Frame: High-strength aluminum alloy profile, anodized surface, section ≥ 80 × 80 mm, wall thickness ≥ 3 mm.
* Base: National standard No.45 steel, thickness ≥ 10 mm.
* Control System: PLC modules, servo motors, and load sensors from internationally recognized brands.
* Display System: Industrial computer with 7-inch HMI touchscreen from leading global brands.
* Fixtures: One set of dedicated clamps included.
Standards Compliance
The complies with the following international and national standards:
* QB/T 2280-2007 – Office Chair Testing Standard
* ANSI/BIFMA X5.1-2017 – General-Purpose Office Chairs Testing Standard
Details Images
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Certifications
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Company Profile
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Office Furniture Chair Integrated Seat Surface and Backrest Durability Testing Machine and Backrest Strength Testing Machine
Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.
• Shipping Options: By sea, air, or express courier according to customer preference.
